Introduction to the lubrication system of Envison intensive mixer and granulator
Envison intensive mixer and granulator lubrication system consists of electric lubrication pump, distributor, pipeline and pipe joints.

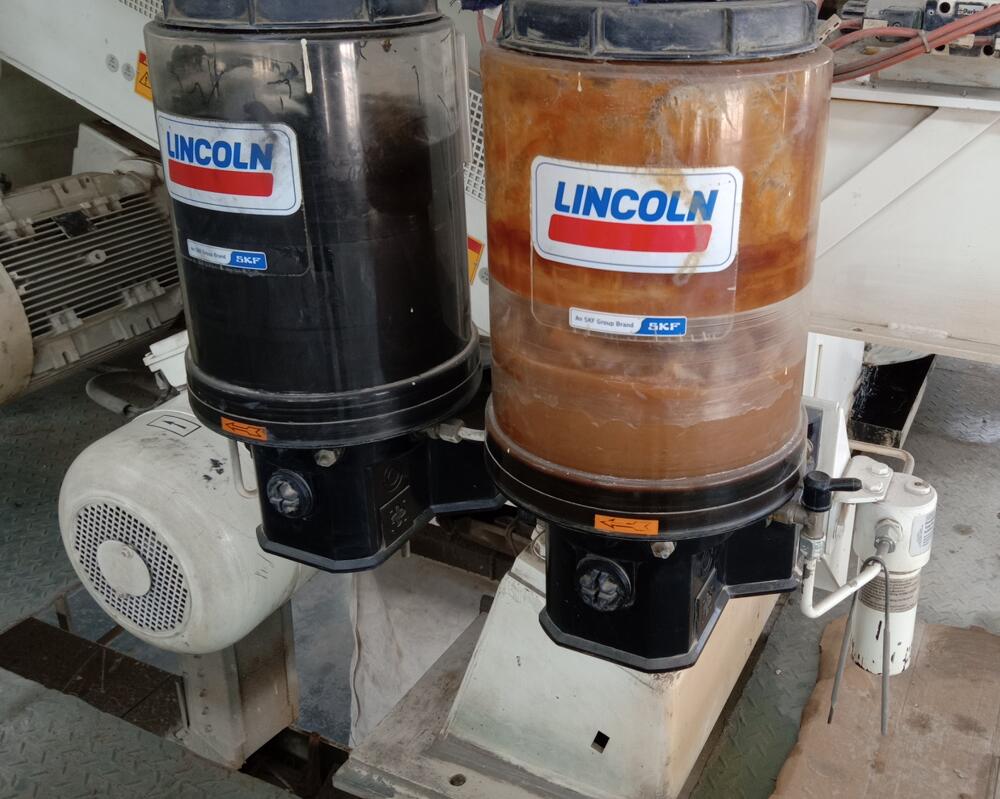

Electric lubrication pump:It integrates multiple functions such as grease storage, providing power for grease flow, grease time control, and grease pressure display.

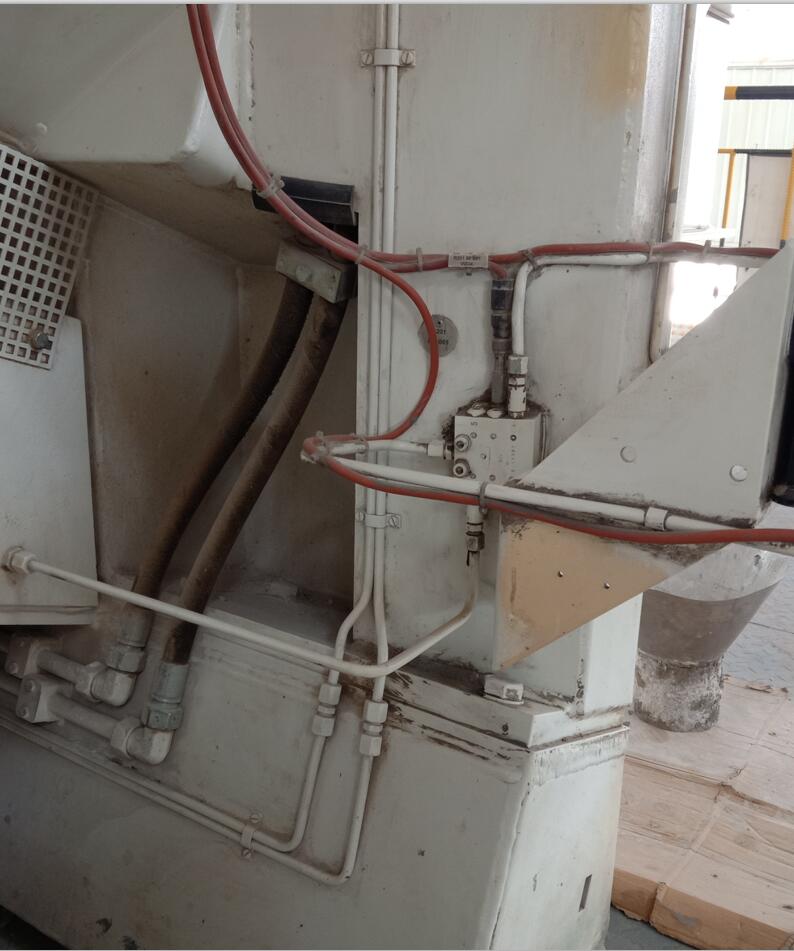

Distributor：After the grease is pumped out from the oil pump, the grease is regularly and quantitatively distributed to each lubrication point through the distributor, so that each rotating pair of the equipment is continuously and effectively lubricated.
Pipeline：Generally, pressure-resistant copper tubes or pressure-resistant composite polymer tubes (pressure resistance up to 1.5-3 MPa) are used to transport the grease pumped by the lubricating oil pump to various lubrication points, with a service life of more than 10 years.
Pipe joint：The lubricating oil pipe joint is a standard quick-change high-pressure pipe joint, which has the advantages of easy disassembly and assembly, safety and reliability.
A set of lubrication system, since it has the function of pumping oil at regular intervals and at the same time, it can be matched with the PLC system. After the grease is added, it can independently continuously and quantitatively lubricate each lubrication point of the equipment, ensuring the safe and reliable operation of the whole machine. It reduces the difficulty of equipment maintenance and reduces the intensity of manual participation, which is widely praised by users!
